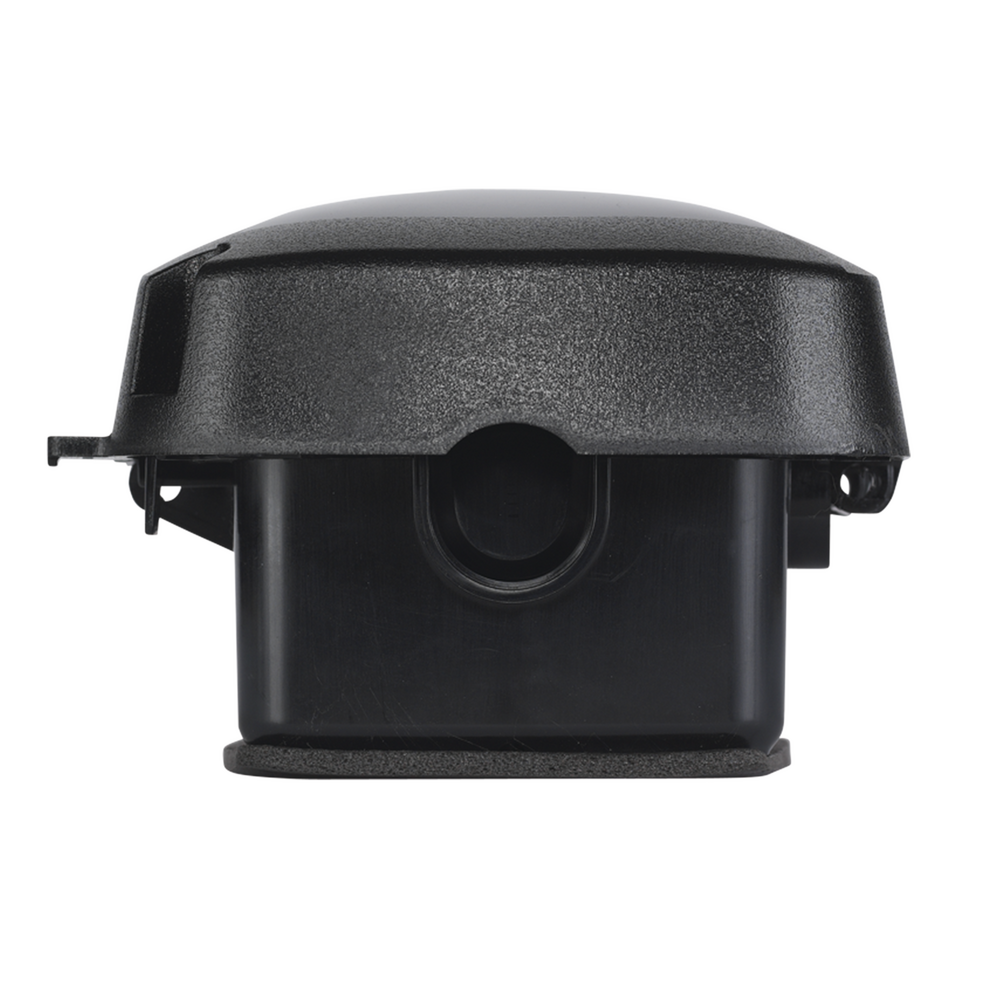

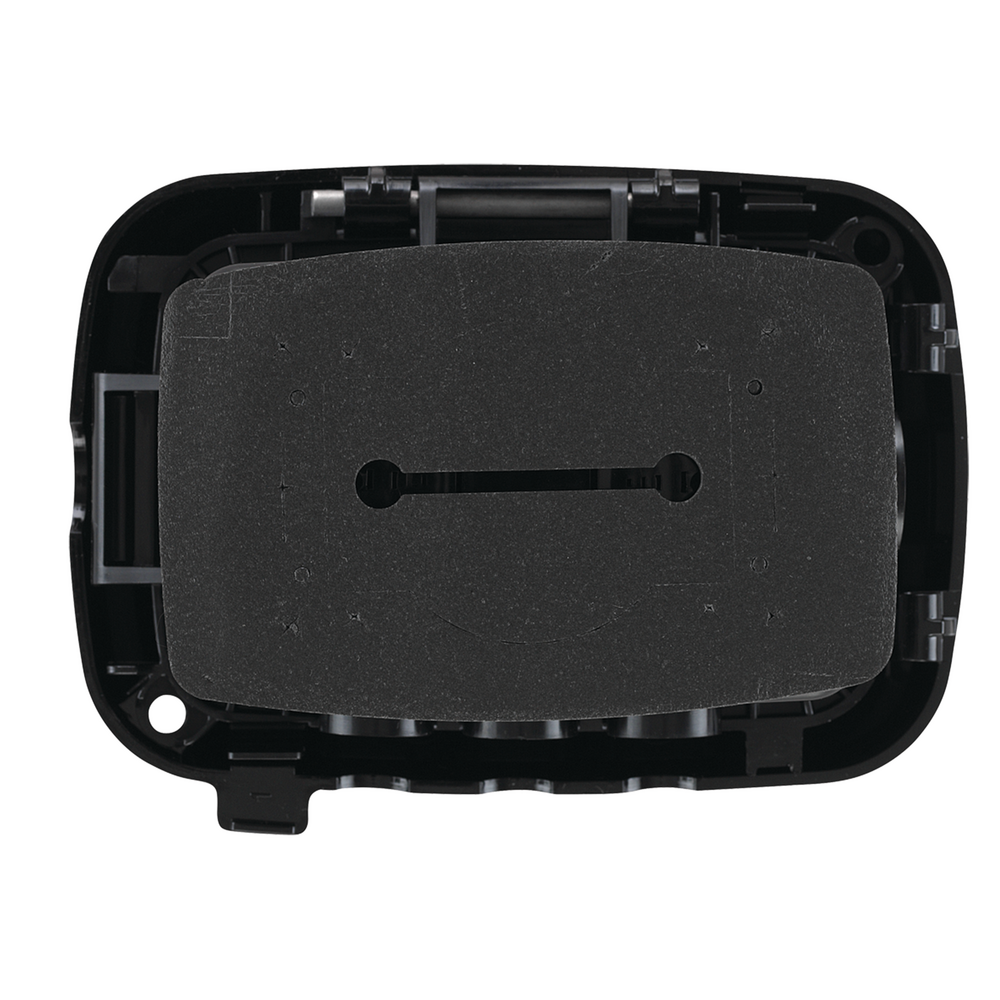

INTERMATIC COVER
Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications CEC Article 26-702 Compliant UL Certified for Type 3R outdoor enclosures Meets requirements for cold impact testing: -60° F (-51° C) Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts 1/8" (3 mm) thick, neoprene gasket with slits for mounting screws Lockable hasp: All models accept up to 1/4" (6 mm) dia shan k Impact rated: 12 lbf. impact test to ensure cover remains intact Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test Specifications Box Type Single Color Black Is Extra-Duty Rated Yes Enclosure Type Outdoor type 3R plastic Hinge Direction Vertical/Horizontal Warranty Period 1-Year limited Accepted Cord Size Max 1x12 AWG, 2x14 AWG Country Of Origin Mexico Cover Gasket 3mm Has Reinforced Hinge Pin Yes Insert Types Included WP17 Material UV Stabilized Polycarbonate RoHS Certification N/A Weatherproof Cover Material UV Stabilized Plastic Auto Start/Stop False Check Valve False DOE Compliant False Freeze protection False Leaf Screen False Product Depth (in) 2.25 Product Depth (mm) 57 Product Height (in) 6.33333333333333 Product Height (mm) 160.3 Product Width (in) 4.66666666666667 Product Width (mm) 119.1 Self Priming False Submersible False UL Certification CULUS Unit Carton Height (in) 6.5 Unit Carton Length (in) 4.75 Unit Carton Weight (lb) 0.5 Unit Carton Width (in) 2.75 Units Per Pallet 720 UV Resiliant Outdoor Enclosure False
